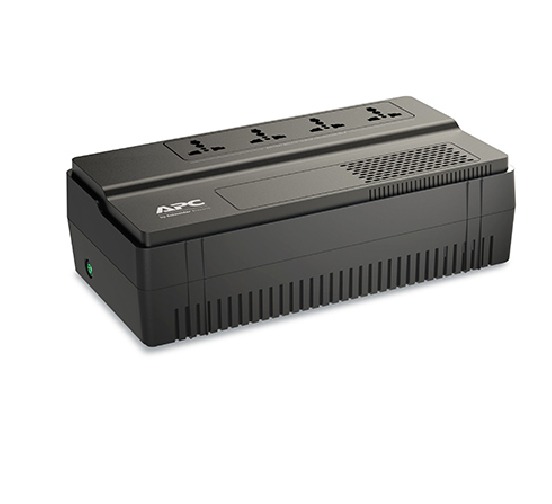

Apc 650Va Ups (Uninterrupted Power Supply)

Product Name:

APC 650VA UPS – Technical Data Sheet

Electrical Characteristics

• Main Input Voltage: 230 V
• Main Output Voltage: 230 V
• Rated Power: 400 W / 650 VA
• Input Connection Type: IEC 60320 C14
• Output Connection Types:
  • 3 IEC 60320 C13
  • 1 IEC 60320 C13 (surge-protected)
  • 2 IEC jumpers (surge-protected)
• Number of Cables: 2

Battery Specifications

• Battery Type: Lead-acid battery
• Battery Voltage: 12 V
• Battery Capacity: 9.0 Ah
• Battery Power: 111 VAh (capacity and runtime)
• Battery Recharge Time: 8 hours
• Battery Life: 4–6 years
• Replacement Battery: RBC17
• Extended Runtime: Not available

Performance Characteristics

• Run Time for Load (400 W): 3 minutes 35 seconds
• Maximum Capacity Used: 100%
• UPS Type: Standby
• Wave Type: Stepped approximation to a sinewave
• Maximum Configurable Power:
  • Power in W: 400 W
  • Power in VA: 650 VA
• Output Frequency:
  • 47–63 Hz (sync to mains)
  • 50/60 Hz ± 1 Hz (unsynchronized)
• Transfer Time: 6 ms typical, 10 ms maximum

Physical Characteristics

• Colour: Beige
• Height: 16.5 cm
• Width: 9.1 cm
• Depth: 28.4 cm
• Net Weight: 6.03 kg
• Mounting Mode: Not rack-mountable
• USB Compatibility: Yes

Input Characteristics

• Network Frequency:
  • 47–63 Hz
  • 50/60 Hz ± 3 Hz auto-sensing
• Input Voltage Limits:
  • Adjustable: 160–286 V
  • Default: 180–266 V
• Maximum Input Current: 7 A

Certifications and Standards

• Standards:
  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Included Equipment

• CD with software
• Documentation CD
• 2 detachable IEC C13 to IEC C14 power cords
• USB cable
