Mecer 3000VA | 2700W (3KVA | 2KW) LCD Smart Online Rackmount UPS

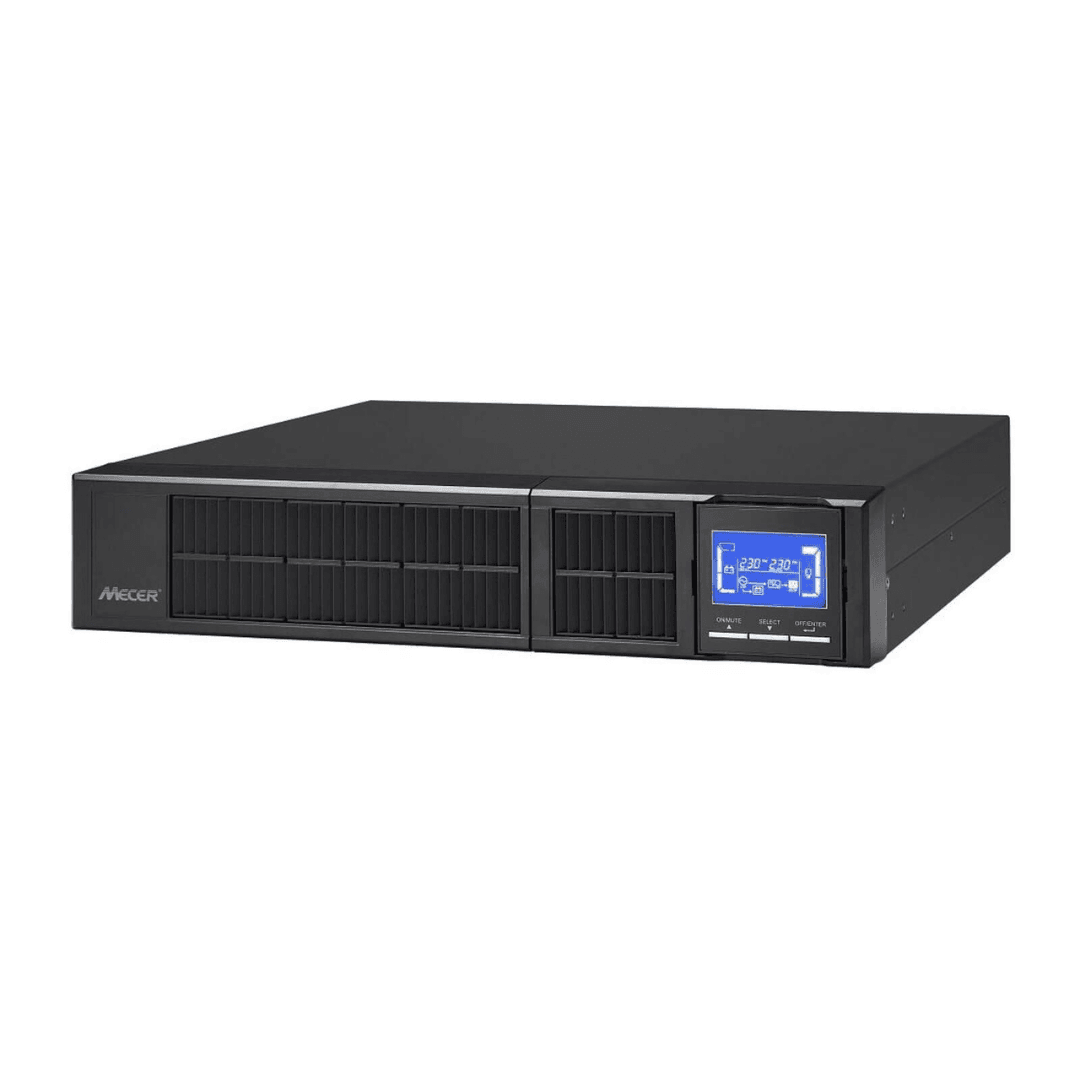

Mecer ME-3000-WPRU 3KVA Online Rackmount Smart-UPS

The Mecer ME-3000-WPRU 3KVA is a robust, high-performance uninterruptible power supply (UPS) designed for critical IT infrastructure such as data centers, server rooms, and telecom systems. Its online double-conversion technology ensures continuous and clean power delivery, protecting sensitive equipment from surges, fluctuations, and outages.

Key Features

• Capacity: 3000 VA / 2700 W, ideal for high-demand environments.
• Form Factor: Rackmount (2U height) for easy integration into server racks or cabinets.
• Type: Online UPS with zero transfer time for seamless power delivery.

Input Specifications

• Voltage Range:
  • Low Line Transfer: Adjustable between 110 VAC to 160 VAC ± 5%.
  • High Line Transfer: 300 VAC ± 5%.
• Frequency Range: 40Hz ~ 70Hz.
• Power Factor: ≥ 0.99 at nominal input voltage.

Output Specifications

• Voltage: Adjustable between 200/208/220/230/240 VAC with ± 1% regulation.
• Frequency:
  • Synchronized Mode: 47 ~ 53 Hz or 57 ~ 63 Hz.
  • Battery Mode: 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz.
• Waveform: Pure sine wave for stable power to sensitive equipment.
• Transfer Time:
  • AC to Battery Mode: Zero transfer time.
  • Inverter to Bypass Mode: 4ms.
• Harmonic Distortion:
  • ≤ 3% for linear loads.
  • ≤ 6% for non-linear loads.

Efficiency

• AC Mode: 90%.
• Battery Mode: 88%.

Battery and Charging

• Battery Type: 12V / 9Ah x 6 batteries.
• Recharge Time: 4 hours to 90% capacity.
• Charging Voltage: 82.1 VDC ± 1%.
• Charging Current: Maximum 1.0 A.

Indicators and Alarms

• LCD Display: Real-time updates on UPS status, load levels, input/output voltage, battery levels, discharge timer, and fault conditions.
• Audible Alarms:
  • Battery Mode: Beeps every 4 seconds.
  • Low Battery: Beeps every second.
  • Overload: Beeps twice every second.
  • Fault: Continuous alarm.

Physical Specifications

• Dimensions: 630mm x 483mm x 88mm (2U rack height).
• Weight: 29.3 kg.
• Noise Level: Less than 50dB at 1 meter.

Environmental Conditions

• Humidity: 20-90% RH, non-condensing.
• Operating Temperature: 0-40°C.

Management and Connectivity

• Interfaces: Smart RS-232/USB ports for local management.
• Optional SNMP: Supports remote monitoring and management via SNMP manager or web browser.
• Compatibility: Works with Windows (2000/XP/Vista/7/8), Linux, Unix, and Mac.

Applications

The Mecer ME-3000-WPRU 3KVA is designed for:

• Data Centers & Server Rooms: Ensures uninterrupted operation of critical infrastructure.
• Telecom Systems: Provides reliable backup to communication equipment.
• Network Closets: Maintains network availability during outages.
• Critical IT Operations: Protects against data loss and system downtime.

With its advanced technology, flexible management options, and reliable performance, this UPS is the ultimate solution for mission-critical environments.
